Slotted Disc Suspension Glass Insulators
Slot insulation is a technique that uses solid insulating materials to isolate the coils within the slots of a motor stator or rotor core from the core. It provides both electrical isolation and mechanical support, falling under the category of solid insulation. Implementation methods are divided into two categories: molded insulation (molded prefabricated parts) and filling insulation (filling gaps). Its functions include preventing leakage and arcing, improving heat dissipation efficiency, reducing vibration and noise, and enhancing environmental adaptability. It is mainly used for the isolation and protection of windings and the core.

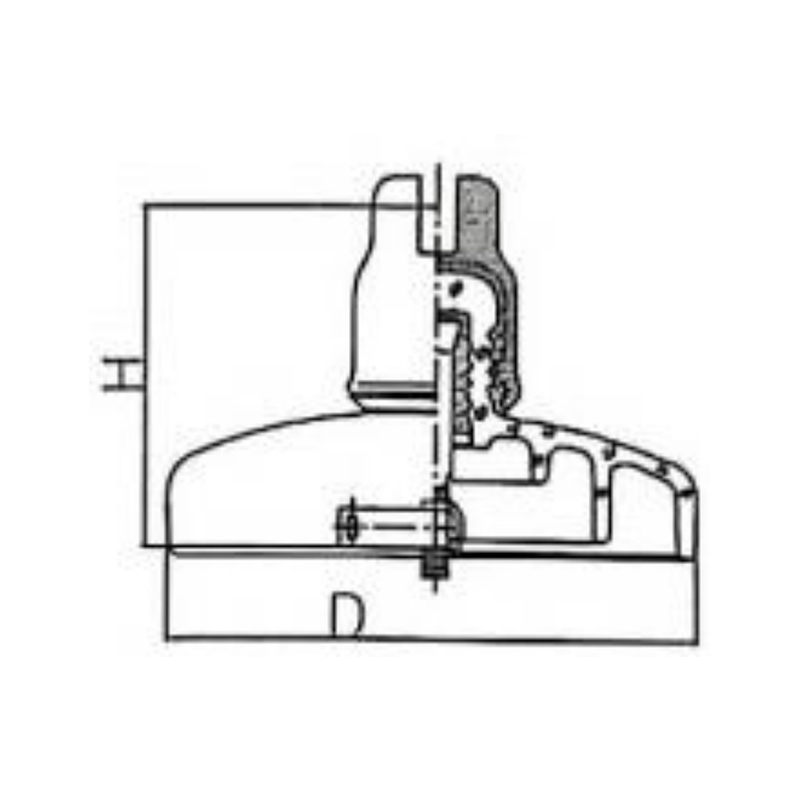

| The specifications of toughened glass suspension insulator of Clevis Type | ||||||||||
| Catalog | Minimum mechanical failing load |
Nominal Diameter |
mm Spacing Height |
Min Nominal Creepage distance |
Power frequency dry flash- over |
Power frequency wet flash- over |
Power frequency puncture voltage |
Radio interference voltage |
Kg Net weight Per unit |
|
| Test voltage to groud |
Max RIV at 1MHz |
|||||||||
| U70BP/146C | 70 | 255 | 146 | 320 | 80 | 50 | 130 | 10 | ≤50 | 3.6 |
| U100BP/146C | 100 | 255 | 146 | 320 | 80 | 50 | 130 | 10 | ≤50 | 4.2 |
| U120BP/146C | 120 | 255 | 146 | 320 | 80 | 50 | 130 | 10 | ≤50 | 4.2 |
| U160BP/170C | 160 | 280 | 170 | 400 | 85 | 55 | 130 | 10 | ≤50 | 6.1 |
