Pollution-Resistant Disc Suspension Glass Insulator

The anti pollution disc glass insulator is a specialized variant within the glass electrical insulator family, engineered to maintain reliable performance in environments where contamination threatens grid stability. Unlike standard designs, this product incorporates optimized skirt configurations—such as increased diameter and extended creepage paths—to slow dirt accumulation and enhance self-cleaning capability. It is specifically developed for industrial zones, chemical facilities, saline-alkali areas, and coastal regions where pollution flashover poses a persistent risk.
Weixiao produces this high-performance insulator with precision and offers tailored customization to meet the demands of specific pollution-prone installations.

Anti Pollution Disc Glass Insulator Specification

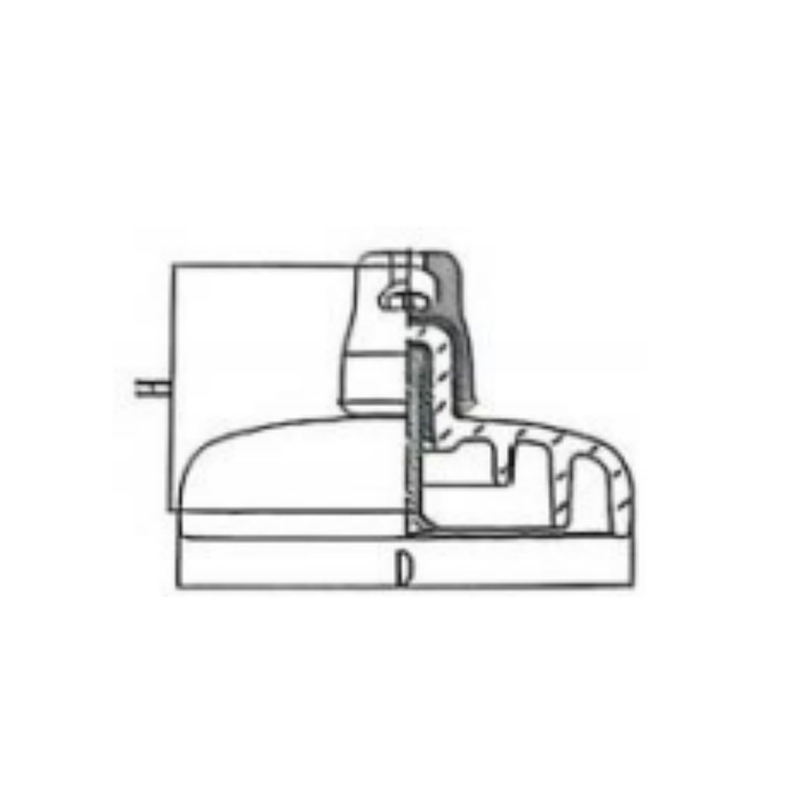

Anti Pollution Disc Glass Insulator Core Structure and Design Highlights

The key difference between pollution-resistant and standard insulators lies in the skirt structure:

• Increased skirt diameter and creepage distance: Compared to standard insulators, they have larger outer diameters and more skirt pieces, with a creepage ratio distance of 25mm/kV or more, effectively extending the leakage current path and reducing the probability of pollution flashover.
• Optimized skirt design: They often adopt bell-shaped, double-layer, or triple-skirt structures, where the upper large skirt shields the lower skirt, reducing surface contamination; the skirt edges are arc-shaped, enhancing self-cleaning performance, and contaminants are easily washed away by rain.
• Unchanged basic composition: They are still composed of glass components, steel caps, and steel feet bonded with cement adhesive, retaining the inherent advantages of glass insulators such as zero-value self-breakage, arc resistance, and high mechanical strength.

Anti Pollution Disc Glass Insulator Applications

• Transmission lines in industrial pollution-intensive areas such as chemical, metallurgical, and coal mining industries
• Offshore transmission projects in coastal areas with high salt spray and humidity
• 110kV-1000kV transmission and distribution lines in high-altitude foggy and repeated icing regions
• Lines in urban dense areas and suburban areas with high dust content

Anti Pollution Disc Glass Insulator Core Advantages

• Superb pollution flashover resistance: Sufficient creepage distance and anti-pollution skirt design ensure stable insulation performance under polluted and humid conditions, significantly reducing line tripping rates.
• Low operation and maintenance costs: Inheriting the zero-value self-breakage feature, no pole climbing inspection is required; deteriorated insulators can be directly detected and replaced; superior self-cleaning performance reduces the frequency of manual cleaning.
• Strong environmental adaptability: Resistant to acid and alkali corrosion and ultraviolet aging, their service life in harsh environments is 5 to 10 years longer than that of standard insulators in the same scenarios.

Packaging

• Outer packaging – Sturdy wooden crates provide structural protection against impact.

• Inner cushioning – Bamboo mats are used to separate individual units, preventing direct contact and abrasion between insulators.

• Container loading – Packing configurations are designed for efficient container utilization while maintaining stability during long-distance shipping.

• Custom packaging – For special project requirements, alternative packaging arrangements can be discussed to accommodate unique transport or storage conditions.

Anti Pollution Disc Glass Insulator After-Sales Service

• 24-hour rapid response – Inquiries and technical issues receive prompt attention, with professional solutions provided as quickly as possible.

• Technical documentation – Each consignment is accompanied by inspection reports and relevant compliance documentation.

• Replacement support – For any quality-related concerns, the company provides clear procedures to address and resolve issues efficiently.

• Sample availability – Product samples are available upon request for pre-order evaluation and testing.

Anti Pollution Disc Glass Insulator Manufacturer | Weixiao

• Manufacturing capacity – Monthly output reaches approximately 400,000 tempered glass insulator units, supported by a fully automated all-electric glass melting furnace.

• Quality certifications – Holds ISO 9001:2015 (Quality Management), ISO 14001:2015 (Environmental Management), and ISO 45001:2018 (Occupational Health and Safety) certifications, alongside energy management and green development credentials.

• R&D infrastructure – Equipped with over 20 advanced testing devices and a dedicated technical team of 20+ professionals, enabling continuous product refinement.

• Factory direct sales – Eliminates intermediary costs while maintaining strict quality control from raw material inspection through final delivery.

• Customization capability – For projects requiring specific mechanical loads or unique skirt configurations, the company offers mold development based on customer-provided drawings.

FAQ

What is the typical creepage distance for pollution-resistant models?
Pollution-resistant insulators generally offer creepage distances ranging from 400mm to over 700mm, depending on the model. For severe contamination environments, creepage ratios of 25mm/kV or higher are standard.

How does the self-cleaning feature work?
The optimized skirt geometry—with curved edges and protective overhang—allows rain to more effectively wash away surface contaminants, reducing gradual buildup that can lead to flashover.

Are these insulators suitable for coastal salt spray conditions?
Yes. The combination of extended creepage distance and enhanced corrosion resistance makes them well-suited for coastal installations, where salt accumulation on standard insulators can cause significant operational issues.

What is the lead time for custom orders?
Lead times vary based on order quantity and whether new molds are required. Custom inquiries are reviewed individually, and timelines are confirmed at the time of order placement.

How is product quality verified before shipment?
Every batch undergoes testing using specialized laboratory equipment, covering mechanical, electrical, and dimensional parameters. Inspection reports accompany each consignment.
